Goods Name :

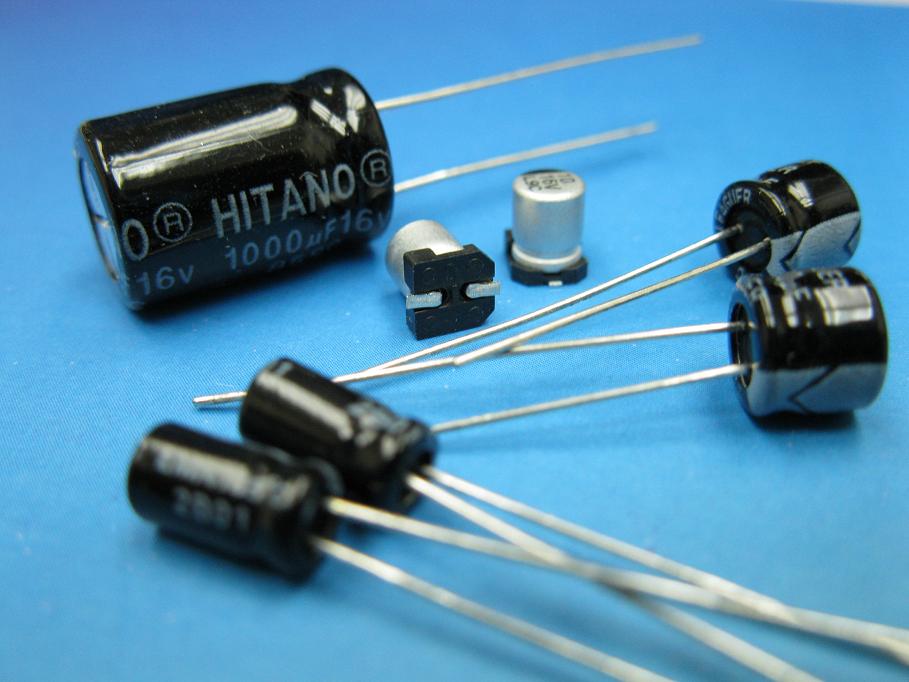

ELECTROLYTIC CAPACITOR
Introduction:

  TO VIEW *.PDF FILES, CLICK ON >>Acrobat Reader 7.0 version

Series
Features
Temperature
Voltage (V.DC)
Capacitance (uF)
Life (Hrs)
Conductive Polymer Type
V Chip
-55~+105
2.5~20
22~1500
2000
Radial
-55~+105
2.5~20
22~1500
2000
V-chip (Surface Mount Type)
General Purpose
-40~+85
4~450
0.1~6800
2000
Wide Temp.
-40~+105
6.3~450
0.1~6800
2000
Non Polar
-40~+85
6.3~50
0.1~47
2000
Low Leakage
-40~+85
6.3~50
0.1~330
2000
Low Impedance
-40~+105
6.3~50
0.1~1000
2000
General Purpose (Radial Type)
Standard
-40~+85
6.3~450
0.47~10000
2000
Wide Temp.
-40~+105
6.3~450
0.47~10000
2000
Non Polar
-40~+105
10~100
0.47~1000
1000
Ultra Miniature
-40~+105
4~50
0.1~220
1000
Super Miniature
-40~+105
4~63
0.47~470
1000
Low Leakage Type
Standard
-40~+105
6.3~63
0.47~1000
1000
Super Miniature
-40~+105
6.3~63
0.47~100
1000
Low Impedance Type
Standard
-40~+105
6.3~450
0.47~15000
2000~5000
Low Profile
-55~+105
6.3~63
0.47~4700
5000
For Ballast
-25~+105
160~450
10~220
5000
SNAP IN Terminal Type
Standard
-40~+85
16~450
47~47000
2000
Wide Temp.
-40~+105
16~450
330~47000
2000
Low Impedance
-40~+105
10~400
68~47000
5000
Axial Type
Standard
-40~+85
10~100
0.47~10000
2000
a Part Number Code
APPLICATION NOTICE
RADIAL TAPING Specification
a RADIAL Package
AXIAL TAPING, Cut Lead & Lead Forming and Cut spec
a AXIAL Package
